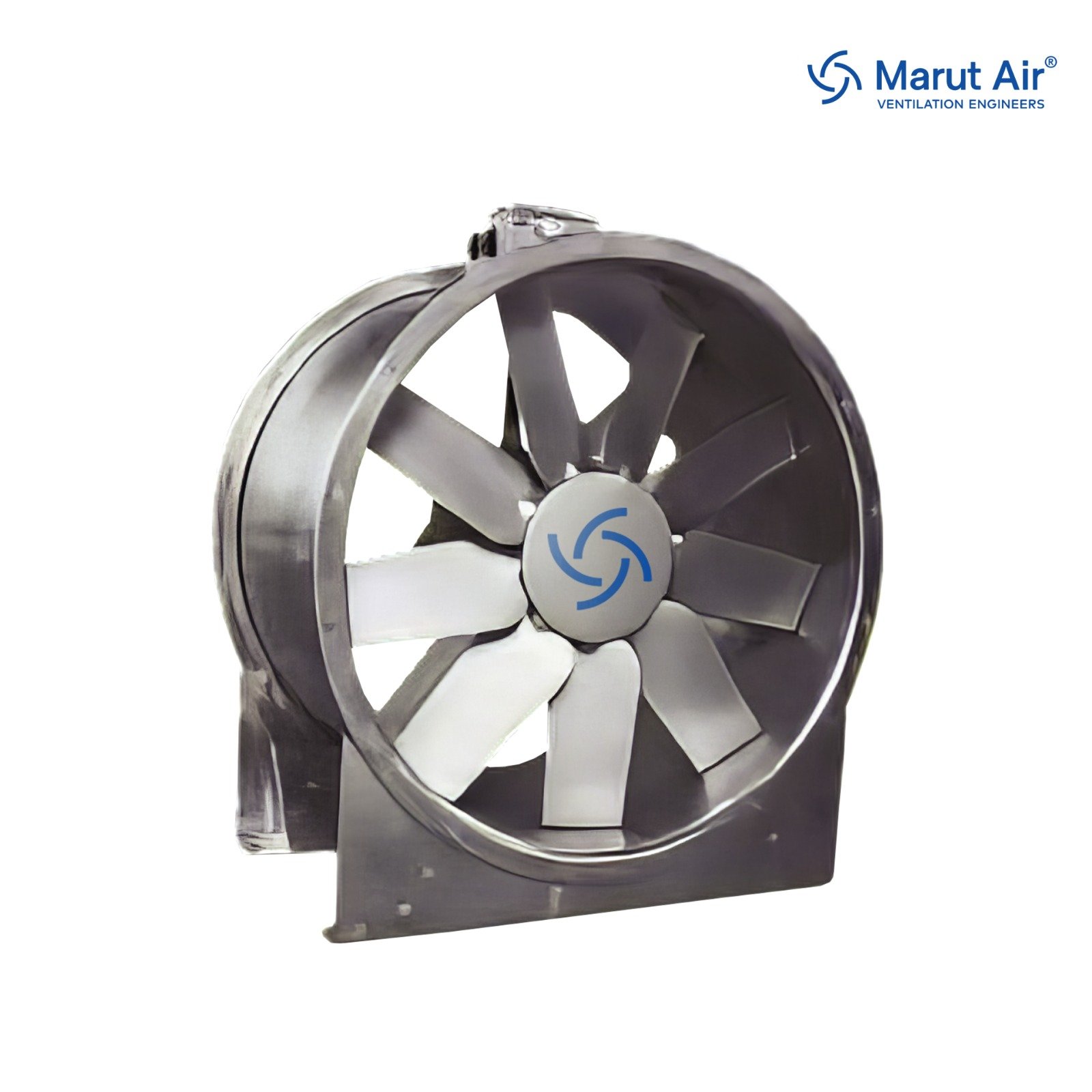

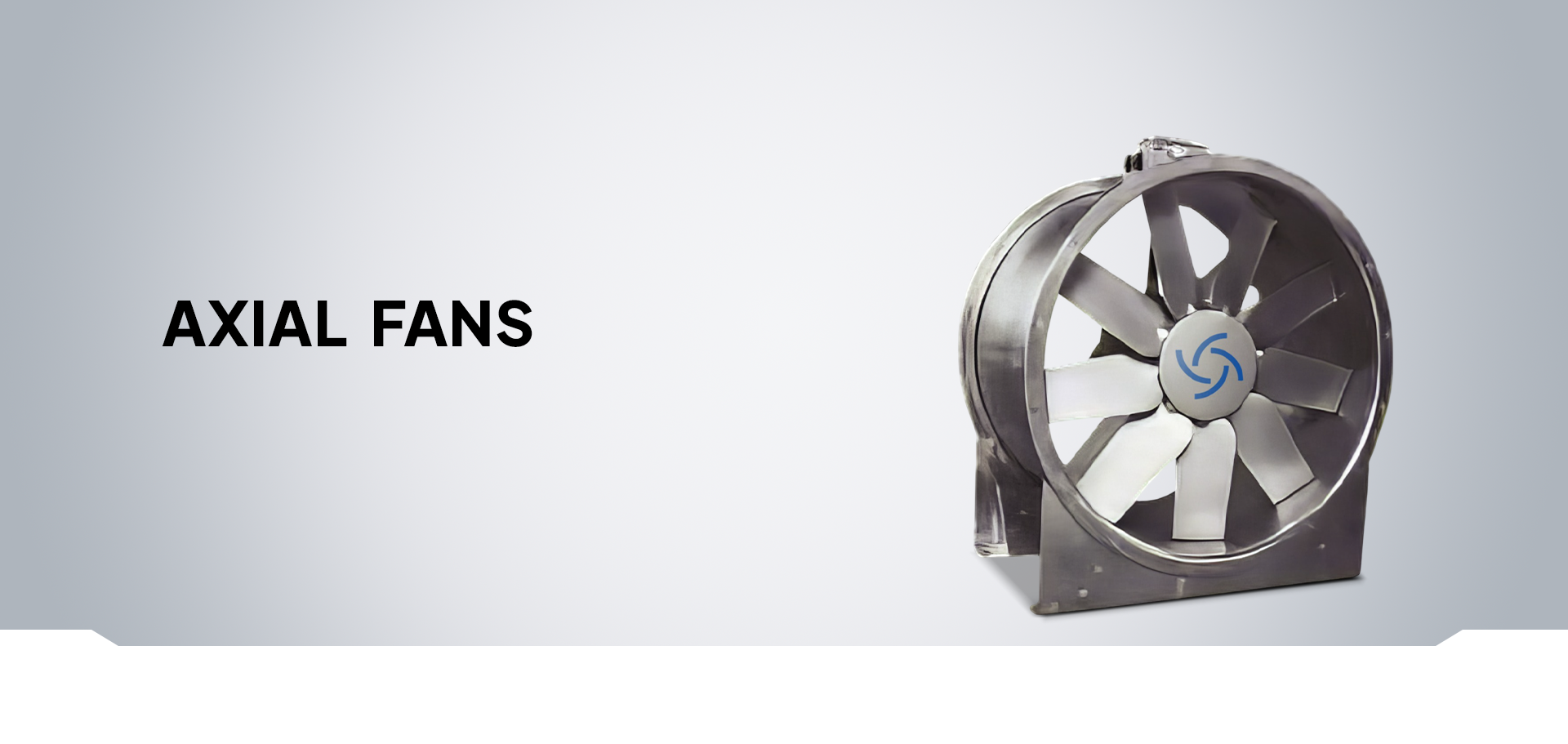

Axial Fans (Smoke Spill Fans)
Smoke spill fans from Marut Air—one of India’s leading axial fan manufacturers—are core components of smoke exhaust systems in commercial buildings, malls, hospitals, parking structures, and other large facilities. Installed at strategic ramp and shaft openings, they rapidly extract smoke and discharge it outdoors to enhance occupant safety during emergencies.
Our direct-driven Axial Flow Fans deliver high performance for general ventilation and smoke control. With wheel diameters from 315 to 1600 mm and field-adjustable blade pitch, they can be tuned to match exact system resistance and flow requirements.
Designed for both indoor and outdoor use, they accommodate ducted and non-ducted installations. Heavy-gauge casings (galvanized or mild steel as specified) ensure robustness and long service life.
Engineered for energy efficiency and low noise, Marut Air axial fans provide dependable airflow with reduced operating costs.
Features
- Dual purpose: daily ventilation and emergency smoke extraction; aerodynamic, adjustable blades for maximum efficiency.
- Motors: IP55, insulation Class H for smoke extract duty.
- Motors: IP55, insulation Class F for CO-exhaust duty, per EN 60034-5 / IEC 85.
- Casing options: galvanized steel or mild steel (as required).
- Compliance: EN 12101-3 (300 °C for 120 minutes / 2 hours).
- Sizes: 315 to 1600 mm wheel diameter.
Offices
bar
bar
gym
gyms
hospitals
hospitals
hotels
hotels
office
residential
residential

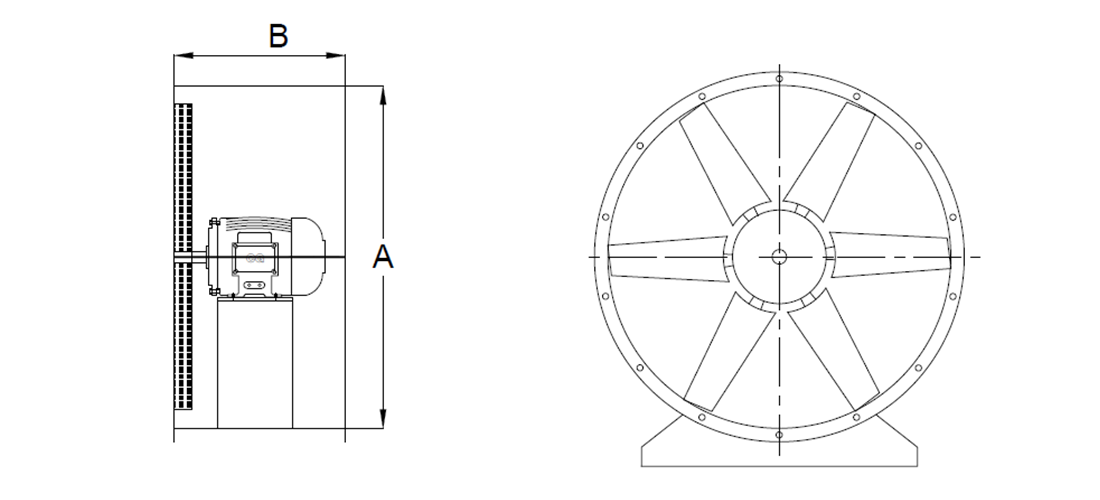

| Model | Wheel Diameter | A | B | Motor Framesize | Model | Wheel Diameter | A | B | Motor Framesize |
|---|---|---|---|---|---|---|---|---|---|
| MAF-315 | 315 | 390 | 340 | 70-80 | MAF-1120 | 1120 | 1238 | 570 | 132M |
| MAF-355 | 355 | 430 | 340 | 71-80 | 700 | 160L | |||
| MAF-400 | 400 | 475 | 375 | 90S | 760 | 180L | |||
| MAF-450 | 450 | 525 | 340 | 71/80 | 800 | 200L | |||
| 400 | 90S/90L | ||||||||
| MAF-500 | 500 | 591 | 400 | 90S/90L | MAF-1250 | 1250 | 1370 | 700 | 160L |
| MAF-560 | 560 | 652 | 400 | 90S/90L | 760 | 180L | |||
| MAF-630 | 630 | 724 | 465 | 112M | 800 | 180L | |||
| MAF-710 | 710 | 804 | 465 | 112M | MAF-1400 | 1400 | 1520 | 800 | 180L |
| MAF-800 | 800 | 895 | 465 | 112M | 800 | 200L | |||
| 530 | 132S | 960 | 250L | ||||||
| MAF-900 | 900 | 995 | 570 | 132M | MAF-1600 | 1600 | 1750 | 800 | 200L |
| 660 | 160M | 960 | 250L | ||||||
| MAF-1000 | 1000 | 1118 | 570 | 132M | 800 | 200M | |||
| 700 | 160M | 1220 | 315M |
