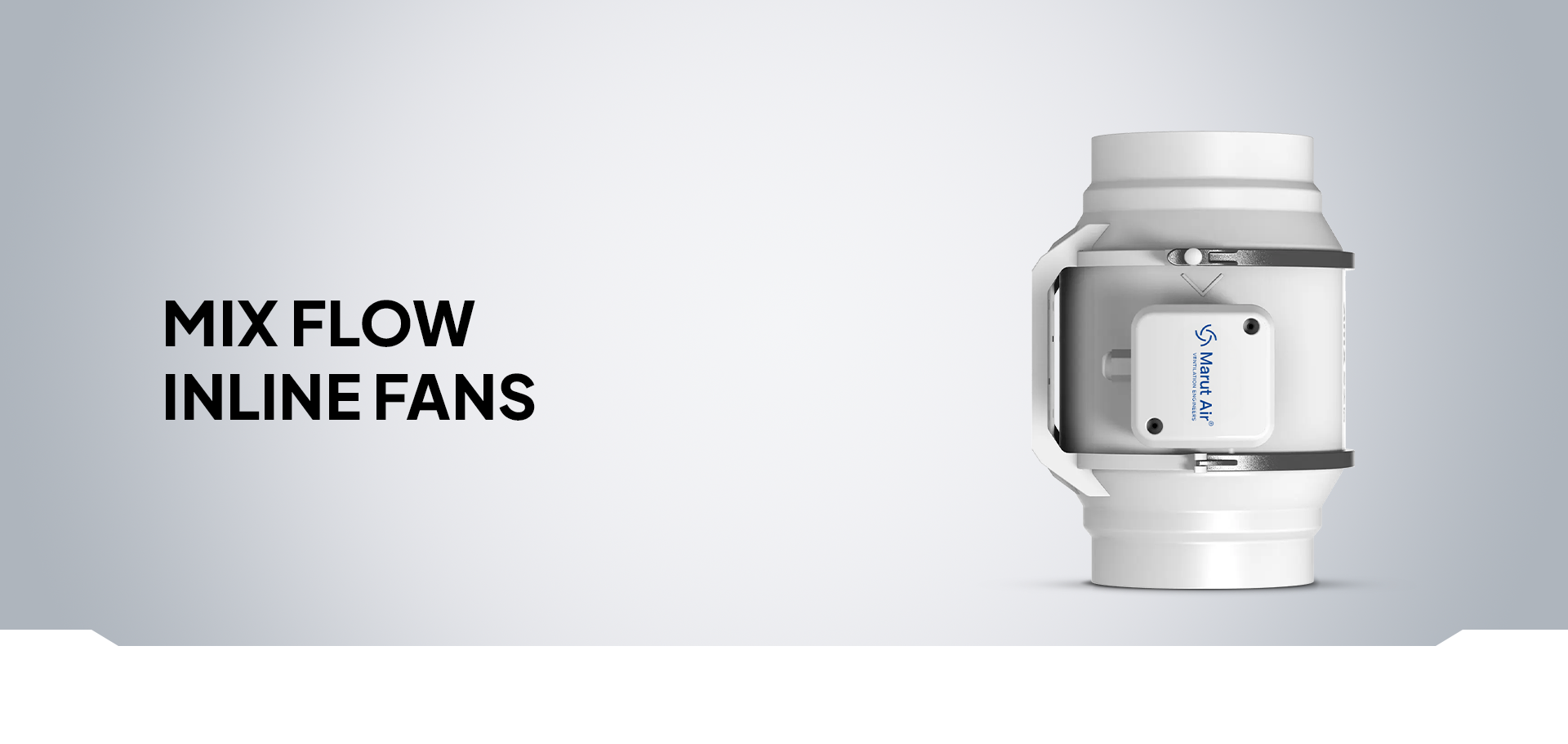

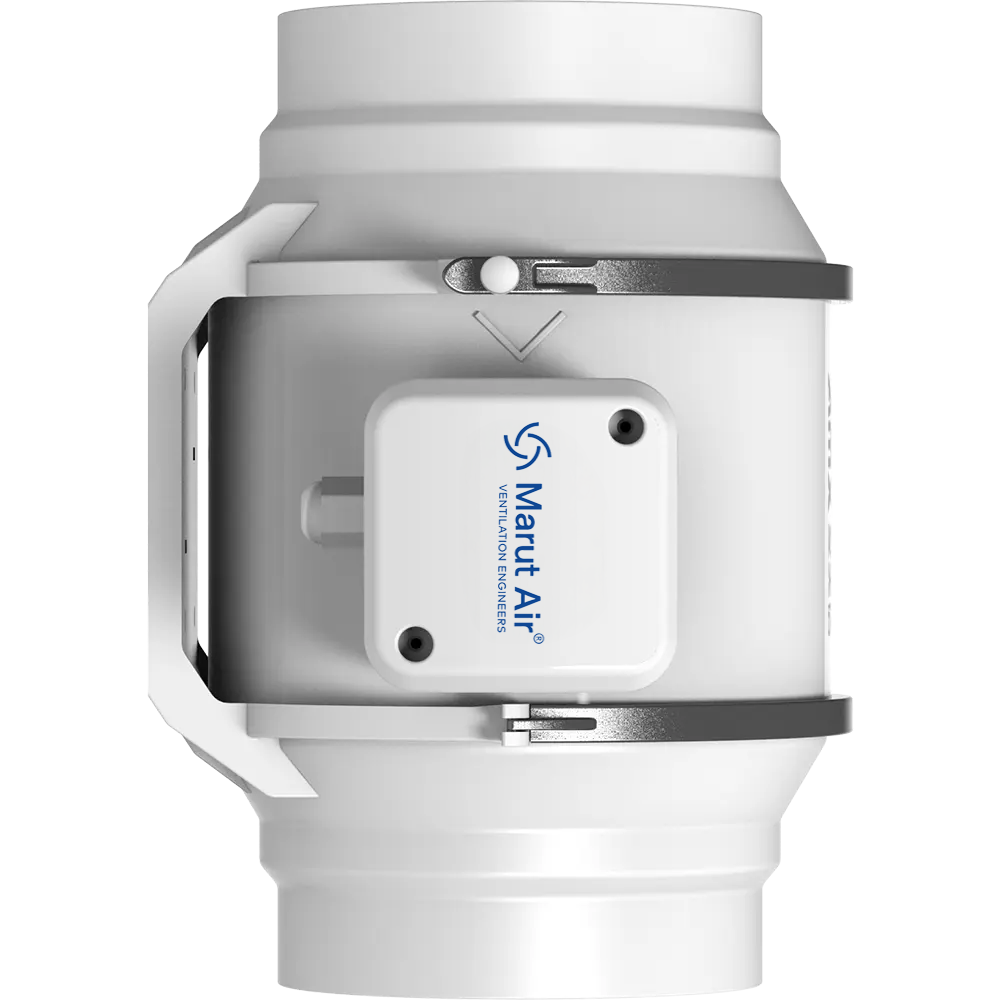

Mix Flow Inline Fans
Marut Air mix flow inline fans combine the advantages of axial and centrifugal designs to deliver high performance with low noise. Engineered for both supply and exhaust ventilation, they provide strong static pressure, stable airflow, and compact installation in ducted systems.
As a leading mixed flow inline fan manufacturer in India, Marut Air offers a wide range of premium models suitable for residential, commercial, and industrial applications—where reliable airflow and quiet operation are essential.
Exhaust systems built around Marut inline fans are ideal for high-humidity and odour-prone areas such as bathrooms and kitchens, as well as shops, cafés, cottages, and apartments. Their pressure capability helps overcome duct resistance, maintaining consistent ventilation and healthier indoor air. Contact us to explore a solution tailored to your layout and airflow targets.
Size 100 to 315 mm Diameter
Direct Driven Type
Hemispheric impeller shape
High efficiency & low sound level
Air performance up to 2050 CMH
Static pressure up to 66 mm Wg
Motor protection rating IPX4
Service life up to 40,000 hours
Direct Driven Type
Direct drive eliminates belts for higher transmission efficiency, lower maintenance, and quieter, smoother operation. The compact form factor simplifies installation, especially in tight ceiling or riser spaces.
Hemispheric Impeller Shape
Optimized blade curvature enhances pressure capability and airflow stability while reducing turbulence and noise—ideal for long ducts or systems with multiple fittings.
High Efficiency and Low Sound Level
The motor–impeller pairing delivers strong air movement with low power draw and acoustic comfort, supporting energy savings without compromising performance.
Air Performance up to 2050 CMH (Cubic Meters per Hour)
Handles substantial air exchange to remove heat, humidity, and contaminants—well suited to offices, retail, kitchens, washrooms, and process areas.
Static Pressure up to 66 mm Wg (Millimeters Water Gauge)
Overcomes duct resistance to maintain target airflow in complex or longer duct runs, helping ensure balanced ventilation at all terminals.
Motor Protection Rating IPX4
Resists splashing water to help prevent moisture ingress, short circuits, and motor corrosion—ideal for humid zones.
Service Life up to 40,000 Hours
Built for longevity and low upkeep, reducing replacement cycles and downtime over the product’s lifetime.
MCI Series
Versatile mixed-flow inline fans for commercial and industrial ventilation where higher airflow and pressure are required—offices, auditoriums, hotels, retail, light manufacturing, and more.
Airport
Provides strong airflow with low noise in concourses, lounges, and back-of-house zones to support comfort and air quality.
Auditorium
Quiet ventilation and air circulation in large assembly areas where acoustic performance matters.
Commercial
Effective for retail floors, corridors, kitchens, and service areas—balancing airflow across multiple spaces with minimal noise.
Toilets
Reliable extraction in washrooms and changing areas, maintaining odour and humidity control through duct runs.
Hotels
Supports guest comfort and IAQ in bathrooms, kitchens, laundry rooms, and BOH areas with compact, quiet performance.
Hospitals
Efficient, quieter ventilation for patient rooms, labs, and support areas—helping maintain appropriate pressure and air changes.
Offices
Improves circulation and IAQ across open offices and enclosed rooms; suitable for toilet exhaust, pantry/kitchen extract, and duct boosting.
Reach Out to Us!
Looking for premium Mix Flow Inline Fans that deliver consistent performance across applications? Get in touch with us:
- Office : Marut Corporate House, Behind The Capital, Science City, Ahmedabad, Gujarat – India 380060
- Call Us at : +91 78618 95765
Airport
Auditorium
Hospitals
Hotels
MCI Series.jpeg
Offices
Toilets
commercial
hospitals
hotels
mci series
office
toilet
| Model | Size, mm | Freq-cy, Hz | Air flow,(CMH) | Air flow,(CFM) | Power, W | Current, A | RPM, min-1 | Voltage, V |
|---|---|---|---|---|---|---|---|---|
| MIG PRO 100 | 100 | 50/60 | 198 | 117 | 26 | 0.12 | 2200 | 1 ~ 240 |
| MIG PRO 125 | 125 | 50/60 | 284 | 168 | 33 | 0.14 | 2250 | 1 ~ 240 |
| MIG PRO 150 | 150 | 50/60 | 530 | 313 | 54 | 0.22 | 2550 | 1 ~ 240 |
| MIG PRO 200 | 200 | 50/60 | 840 | 496 | 128 | 0.53 | 2450 | 1 ~ 240 |
| MIG PRO 250 | 250 | 50/60 | 1405 | 829 | 225 | 1.2 | 2450 | 1 ~ 240 |
| MIG PRO 315 | 315 | 50/60 | 2206 | 1302 | 390 | 1.9 | 2350 | 1 ~ 240 |
| Model | Size, mm | Freq-cy, Hz | Air flow,(CMH) | Air flow,(CFM) | Power, W | Current, A | RPM, min-1 | Voltage, V |
|---|---|---|---|---|---|---|---|---|
| MIG E-PRO 100 | 100 | 50/60 | 366 | 216 | 70 | 0.94 | 3800 | 1 ~ 240 |
| MIG E-PRO 125 | 125 | 50/60 | 561 | 331 | 70 | 0.94 | 3800 | 1 ~ 240 |
| MIG E-PRO 150 | 150 | 50/60 | 647 | 382 | 70 | 0.94 | 3000 | 1 ~ 240 |
| MIG E-PRO 200 | 200 | 50/60 | 1250 | 738 | 180 | 2.3 | 3000 | 1 ~ 240 |
| MIG E-PRO 250 | 250 | 50/60 | 1650 | 974 | 255 | 2.7 | 3000 | 1 ~ 240 |
| MIG E-PRO 315 | 315 | 50/60 | 2206 | 1302 | 250 | 2.5 | 2350 | 1 ~ 240 |
Mixed-flow inline fans combine axial and centrifugal principles to deliver higher pressure and airflow in ducted systems. They are widely used in bathrooms, kitchens, commercial facilities, and industrial spaces where airflow must overcome duct resistance while staying quiet and efficient.
An engineered impeller generates both axial and radial components of flow. Air enters parallel to the shaft, is accelerated and partially redirected outward, and then exits with increased pressure—delivering stable airflow through ductwork.
They are designed for superior ventilation performance with high efficiency, low noise, compact form factor, and robust durability for continuous service across residential, commercial, and industrial settings.
If you have suitable electrical and carpentry skills, basic installation may be possible; however, we recommend hiring a licensed electrician for wiring and controls to ensure safety and code compliance.
Yes. Improper installation can lead to electrical hazards, poor airflow, excessive noise, or vibration. Professional installation helps ensure performance, safety, and long-term reliability.
